WASHING MACHINE

WITL 86

Instructions for use

English, 1

Contents

Installation, 2-3

Unpacking and levelling, 2

Electric and water connections, 2-3

The first wash cycle, 3

Technical details, 3

Washing machine description, 4-5

Control panel, 4

How to open and shut the drum, 5

Leds, 5

Starting and Programmes, 6

Briefly: how to start a programme, 6

Programme table, 6

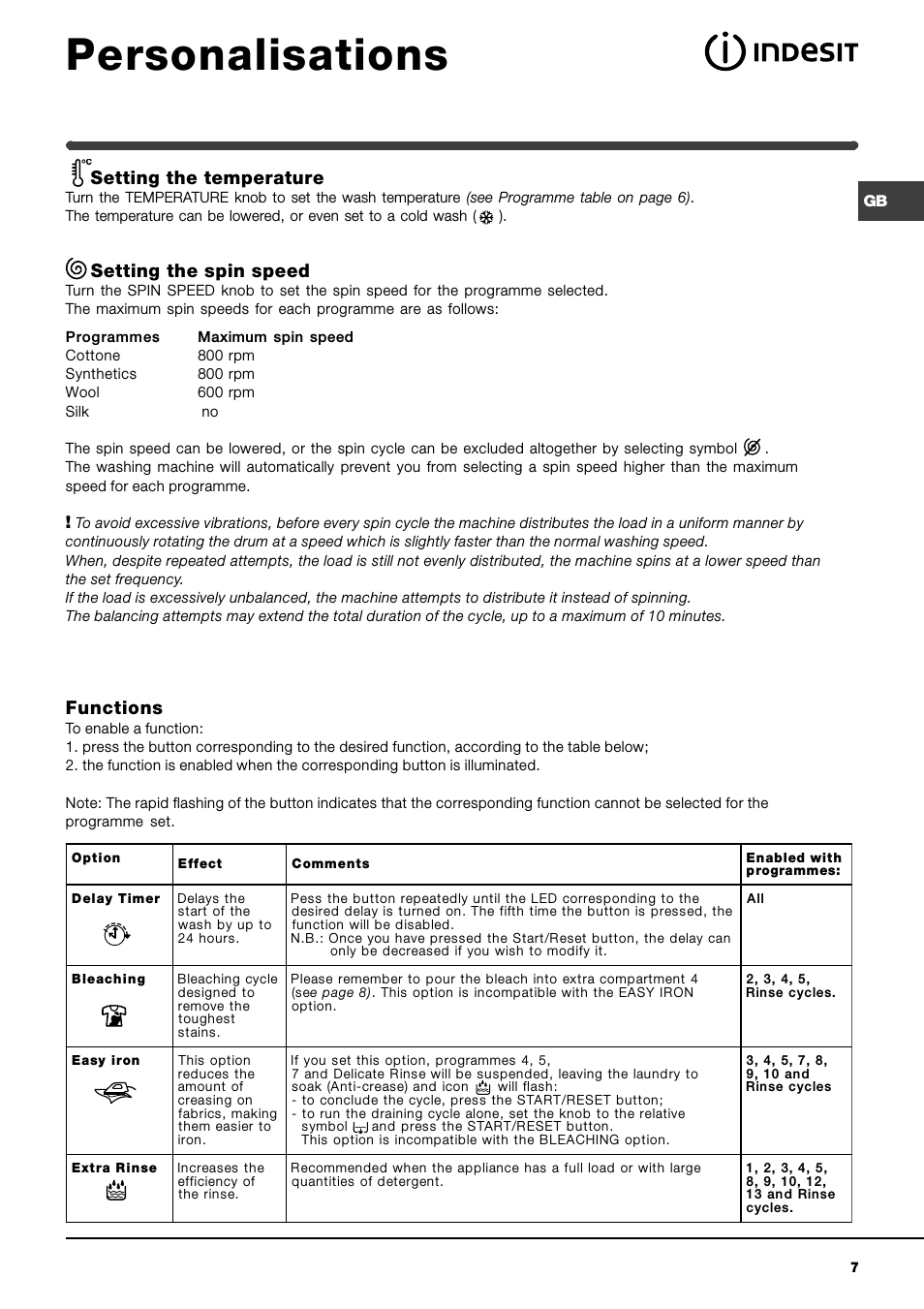

Personalisations, 7

Setting the temperature, 7

Setting the spin cycle, 7

Functions, 7

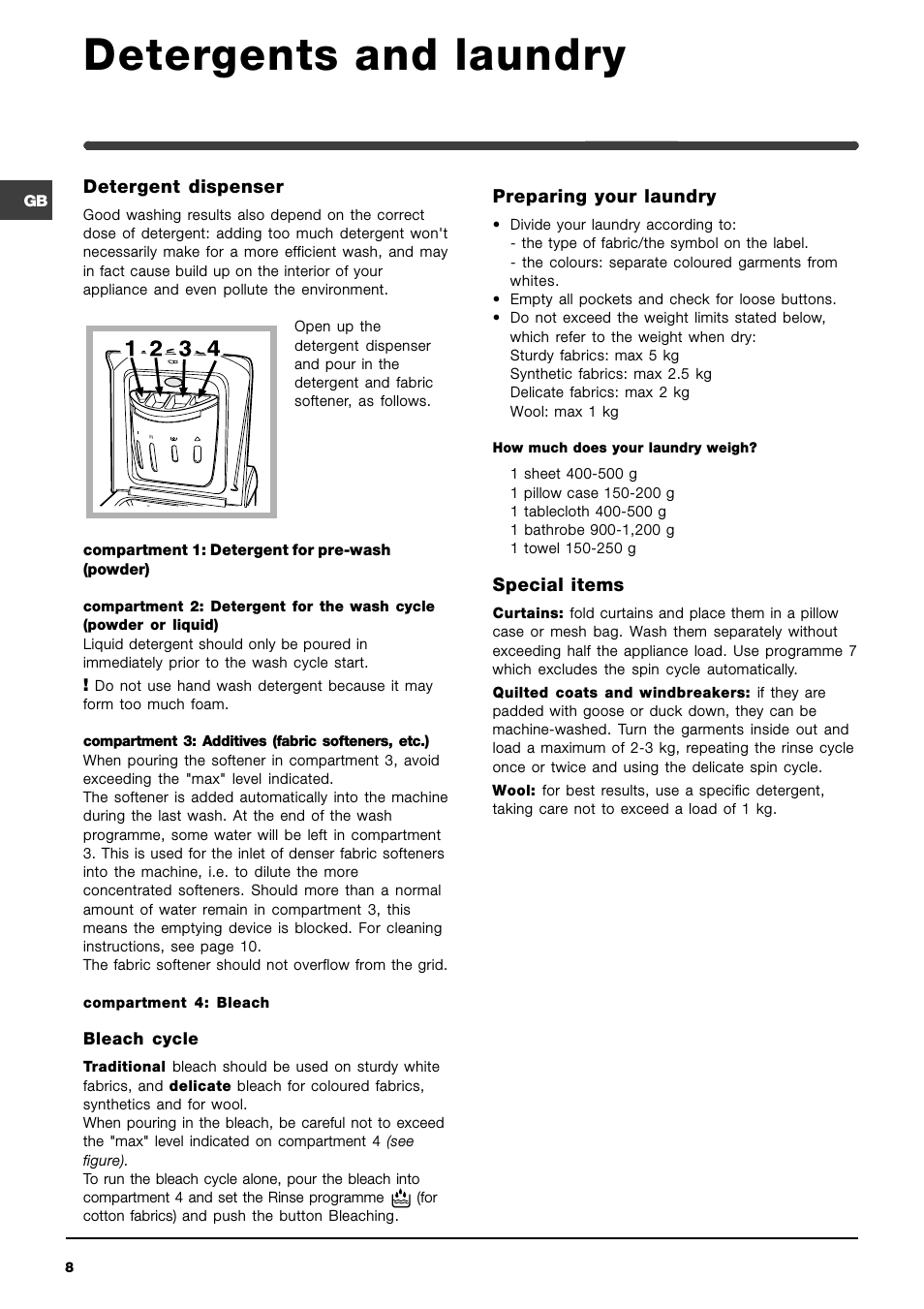

Detergents and laundry, 8

Detergent dispenser, 8

Bleach cycle, 8

Preparing your laundry, 8

Special items, 8

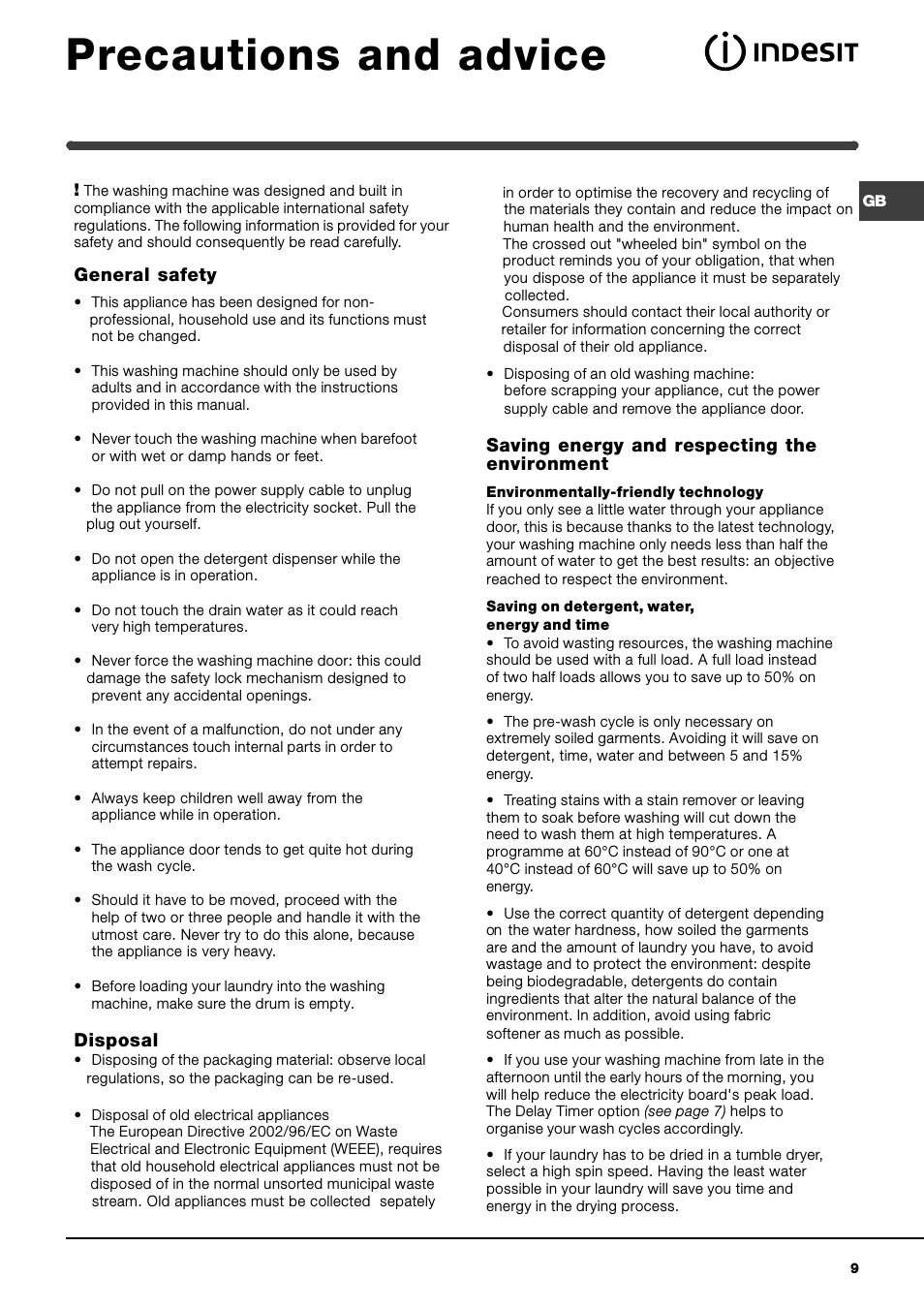

Precautions and advice, 9

General safety, 9

Disposal, 9

Saving energy and respecting the environment, 9

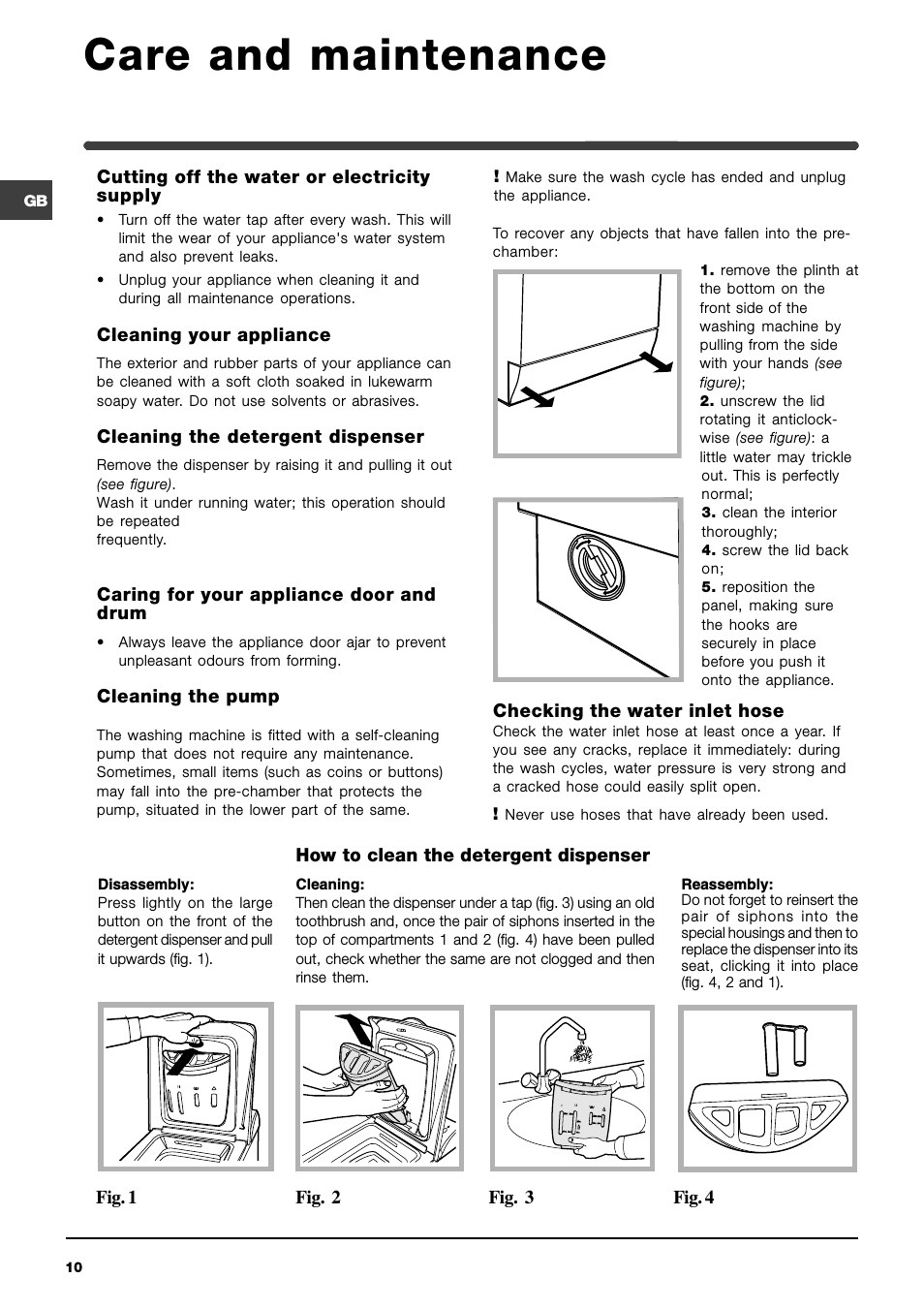

Care and maintenance, 10

Cutting off the water or electricity supply, 10

Cleaning your appliance, 10

Caring for your appliance door and drum, 10

Cleaning the pump, 10

Checking the water inlet hose, 10

Cleaning the detergent dispenser, 10

Troubleshooting, 11

Service, 12

Before calling for Assistance, 12

CIS

РУССКИЙ, 13

Español, 25

Magyar, 37

Slovenský, 61

Èeský, 49

Keep this instruction manual in a safe place for

future reference. Should the appliance be sold,

transferred or moved, make sure the instruction

manual accompanies the washing machine to inform

the new owner as to its operation and features.

Read these instructions carefully: they contain vital

information on installation, use and safety.

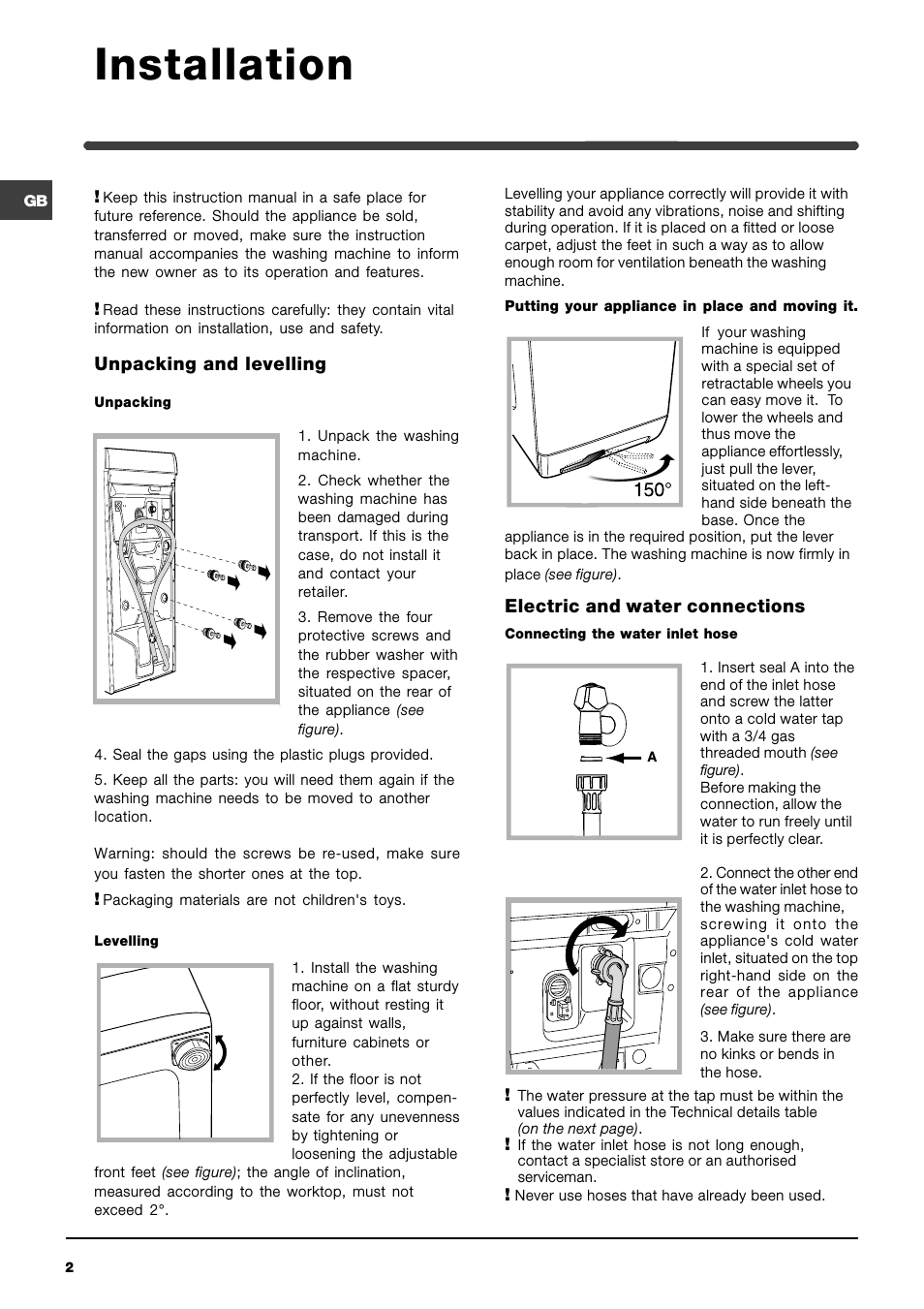

Unpacking and levelling

Unpacking

1. Unpack the washing

machine.
2. Check whether the

washing machine has

been damaged during

transport. If this is the

case, do not install it

and contact your

retailer.
3. Remove the four

protective screws and

the rubber washer with

the respective spacer,

situated on the rear of

the appliance (see

figure).

4. Seal the gaps using the plastic plugs provided.
5. Keep all the parts: you will need them again if the

washing machine needs to be moved to another

location.

Warning: should the screws be re-used, make sure
you fasten the shorter ones at the top.

Packaging materials are not children’s toys.

Levelling

1. Install the washing

machine on a flat sturdy

floor, without resting it

up against walls,

furniture cabinets or

other.

2. If the floor is not

perfectly level, compen-

sate for any unevenness

by tightening or

loosening the adjustable

front feet (see figure); the angle of inclination,

measured according to the worktop, must not

exceed 2°.

Levelling your appliance correctly will provide it with

stability and avoid any vibrations, noise and shifting

during operation. If it is placed on a fitted or loose

carpet, adjust the feet in such a way as to allow

enough room for ventilation beneath the washing

machine.
Putting your appliance in place and moving it.

If your washing

machine is equipped

with a special set of

retractable wheels you

can easy move it. To

lower the wheels and

thus move the

appliance effortlessly,

just pull the lever,

situated on the left-

hand side beneath the

base. Once the

appliance is in the required position, put the lever

back in place. The washing machine is now firmly in
place (see figure).

Electric and water connections

Connecting the water inlet hose

1. Insert seal A into the

end of the inlet hose

and screw the latter

onto a cold water tap

with a 3/4 gas

threaded mouth (see

figure).

Before making the

connection, allow the

water to run freely until

it is perfectly clear.

2. Connect the other end

of the water inlet hose to

the washing machine,

screwing it onto the

appliance’s cold water

inlet, situated on the top

right-hand side on the

rear of the appliance

(see figure).
3. Make sure there are

no kinks or bends in

the hose.

The water pressure at the tap must be within the

values indicated in the Technical details table

(on the next page).

If the water inlet hose is not long enough,

contact a specialist store or an authorised

serviceman.

Never use hoses that have already been used.

Installation

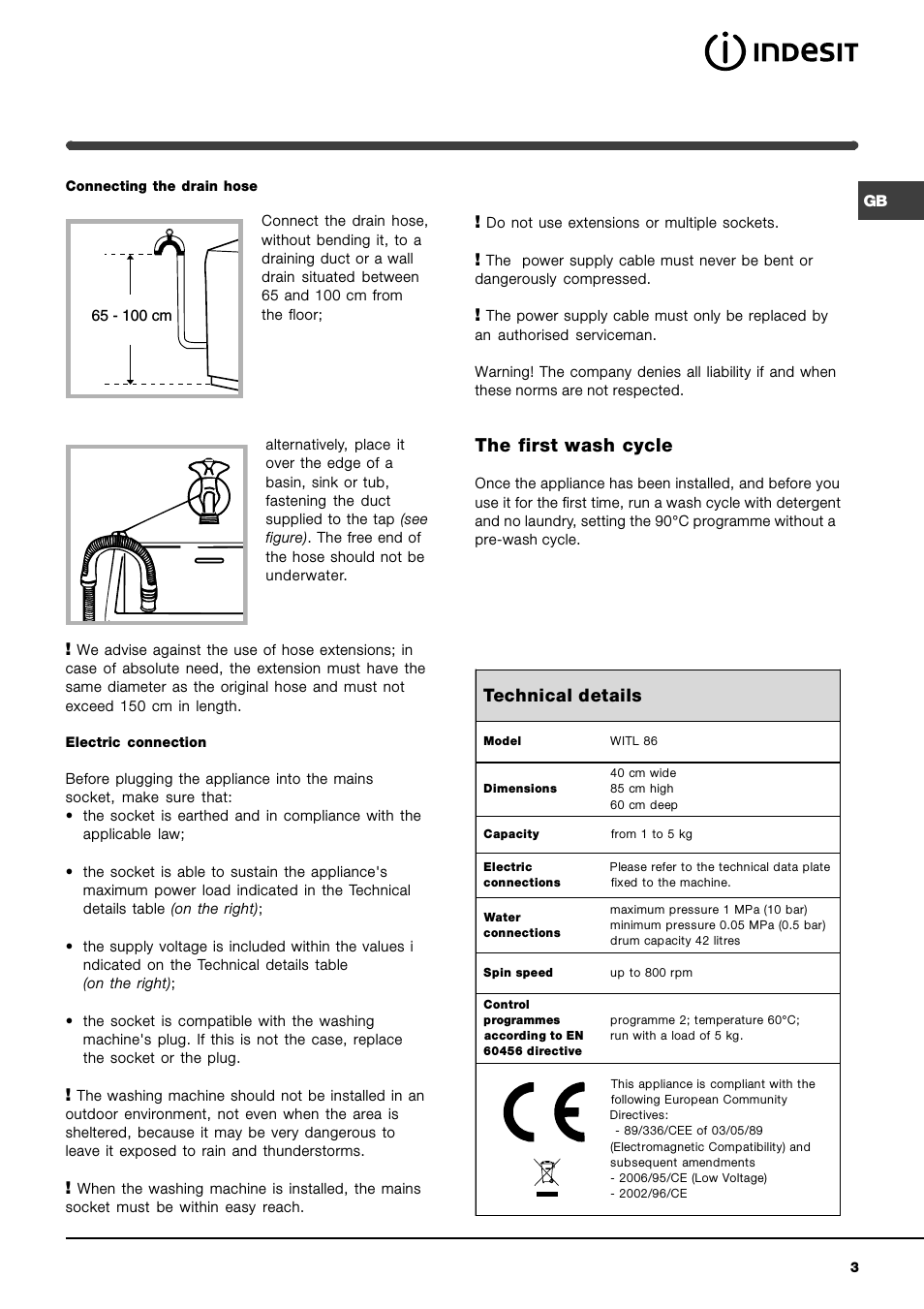

Connecting the drain hose

Connect the drain hose,

without bending it, to a

draining duct or a wall

drain situated between

65 and 100 cm from

the floor;

alternatively, place it

over the edge of a

basin, sink or tub,

fastening the duct

supplied to the tap (see

figure). The free end of

the hose should not be

underwater.

We advise against the use of hose extensions; in

case of absolute need, the extension must have the

same diameter as the original hose and must not

exceed 150 cm in length.

Electric connection

Before plugging the appliance into the mains

socket, make sure that:

the socket is earthed and in compliance with the

applicable law;

the socket is able to sustain the appliance’s

maximum power load indicated in the Technical

details table (on the right);

the supply voltage is included within the values i

ndicated on the Technical details table

(on the right);

the socket is compatible with the washing

machine’s plug. If this is not the case, replace

the socket or the plug.

The washing machine should not be installed in an

outdoor environment, not even when the area is

sheltered, because it may be very dangerous to

leave it exposed to rain and thunderstorms.

When the washing machine is installed, the mains

socket must be within easy reach.

Do not use extensions or multiple sockets.

The power supply cable must never be bent or

dangerously compressed.

The power supply cable must only be replaced by

an authorised serviceman.

Warning! The company denies all liability if and when

these norms are not respected.

The first wash cycle

Once the appliance has been installed, and before you

use it for the first time, run a wash cycle with detergent

and no laundry, setting the 90°C programme without a

pre-wash cycle.

65 — 100 cm

Technical details

Model

WITL 86

Dimensions

40 cm wide
85 cm high
60 cm deep

Capacity

from 1 to 5 kg

Electric
connections

Please refer to the technical data plate

fixed to the machine.

Water

connections

maximum pressure 1 MPa (10 bar)
minimum pressure 0.05 MPa (0.5 bar)
drum capacity 42 litres

Spin speed

up to 800 rpm

Control
programmes

according to EN

60456 directive

programme 2; temperature 60°C;
run with a load of 5 kg.

This appliance is compliant with the
following European Community

Directives:

— 89/336/CEE of 03/05/89

(Electromagnetic Compatibility) and
subsequent amendments
— 2006/95/CE (Low Voltage)
— 2002/96/CE

ON-OFF/LID LOCK led:

If this LED is on, the appliance Lid is locked to prevent it from being opened accidentally; to avoid any

damages, you must wait for the lamp to flash before you open the Lid.

The rapid flashing of the ON-OFF/LID LOCK Led together with the flashing of at least one other LED indicates

there is an abnormality (see page 11).

Control panel

Washing machine description

START/STOP

button

SPIN

knob

TEMPERATURE

knob

START/RESET

button

FUNCTION

Buttons

PROGRAMME

knob

LEDs

LID LOCKED

LED

Detergent dispenser to add detergent and fabric

softener (see page 8).

LEDs to find out which wash cycle phase is under way.

If the Delay Timer function has been set, the time left

until the programme starts will be indicated (see page 5).

FUNCTION keys to select the functions available.

The button corresponding to the function selected will

remain on.

SPIN SPEED knob to set the spin speed or exclude the

spin cycle completely (see page 7).

TEMPERATURE knob to set the temperature or the cold

wash cycle (see page 7).

ON/OFF key to turn the washing machine on and

off.

START/RESET key to start the programmes or

cancel incorrect settings.

ON-OFF/LID LOCK led, to find out whether the

washing machine is on (flashing) and if the lid may be

opened (see page 5).

PROGRAMME knob to set the programmes

(see page 6).

The knob stays still during the cycle.

Washing machine description, Control panel

Cycle phase under way:

During the wash cycle, the LEDs gradually illumi-

nate on to indicate the cycle phase under way:

Prewash

Wash

Rinse

Spin cycle

Note: during draining, the LED corresponding to

the Spin cycle phase will be turned on.

Function buttons

The FUNCTION BUTTONS also act like LEDS.

When a function is selected, the corresponding

button is illuminated.

If the function selected is incompatible with the

programme set, the button will flash and the function

will not be enabled.

If you set a function that is incompatible with another

function you selected previously, only the last one

selected will be enabled.

Leds

The LEDS provide important information.

This is what they can tell you:
Delay set:

If the Delay Timer function has been enabled (see

page. 7), once you have started the programme,

the LED corresponding to the delay set will begin to

flash:

As time passes, the remaining delay will be

displayed, and the corresponding LED will flash:

Once the set delay is complete, the flashing LED will

turn off and the programme set will start.

Fig. 3

Fig. 4

Fig. 1

Fig. 2

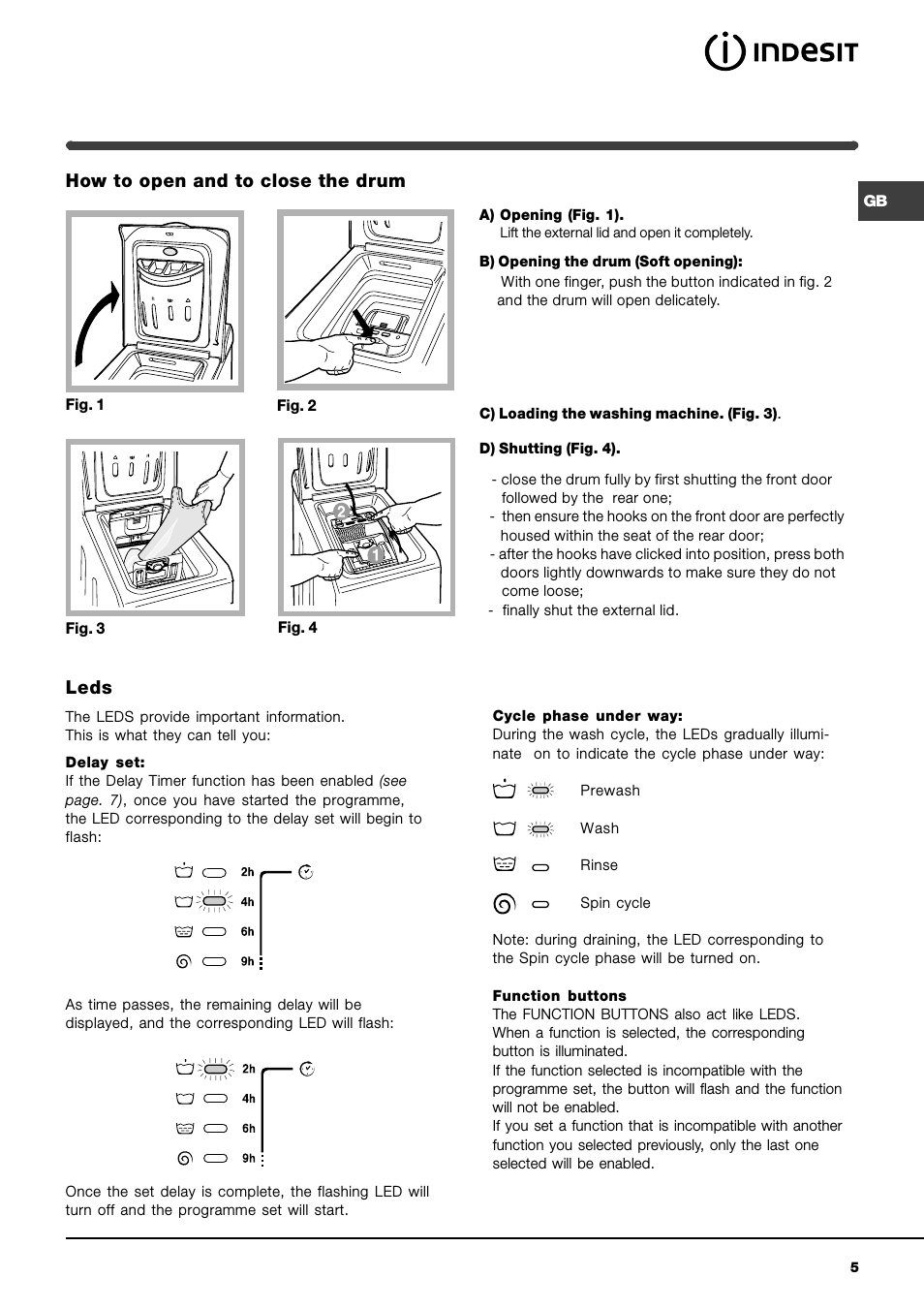

A) Opening (Fig. 1).

Lift the external lid and open it completely.

B) Opening the drum (Soft opening):
With one finger, push the button indicated in fig. 2

and the drum will open delicately.

C) Loading the washing machine. (Fig. 3).

D) Shutting (Fig. 4).

— close the drum fully by first shutting the front door

followed by the rear one;

— then ensure the hooks on the front door are perfectly

housed within the seat of the rear door;

— after the hooks have clicked into position, press both

doors lightly downwards to make sure they do not

come loose;

— finally shut the external lid.

How to open and to close the drum

Type of fabric and

degree of soil

Programmes

Tempe-

rature

Detergent

Fabric

softener

Stain

removal

option/

bleach

Cycle

length

(minutes)

Description of wash cycle

p re-

wash

S ta nda rd

Cotton:

Extremely soiled whites

(sheets, tablecloths, etc.)

90°C

175

Pre-wash, wash cycle, rinse cycles,

intermediate and final spin cycles

Cotton:

Extremely soiled whites

(sheets, tablecloths, etc.)

90°C

Delicate/

Traditional

160

Wash cycle, rinse cycles,

intermediate and final spin cycles

Cotton:

Heavily soiled whites and

fast colours

60°C

Delicate/

Traditional

150

Wash cycle, rinse cycles,

intermediate and final spin cycles

Cotton:

Heavily soiled whites and

delicate colours

40°C

Delicate/

Traditional

142

Wash cycle, rinse cycles,

intermediate and final spin cycles

Cotton:

Slightly soiled whites

and delicate colours (shirts,

jumpers, etc.)

40°C

Delicate/

Traditional

Wash cycle, rinse cycles,

intermediate and final spin cycles

Synthetics:

Heavily soiled fast

colours (baby linen, etc.)

°C

Delicate

Wash cycle, rinse cycles, anti-

crease or delicate spin cycle

Synthetics:

Heavily soiled fast

colours (baby linen, etc.)

40°C

Delicate

Wash cycle, rinse cycles, anti-

crease or delicate spin cycle

Synthetics: Delicate fast colours

(slightly soiled)

40°C

Delicate

Wash cycle, rinse cycles, anti-

crease or delicate spin cycle

W ool

40°C

Wash cycle, rinse cycles

and

delicate spin cycle

Very delicate fabrics (curtains,

silk, viscose, etc.)

30°C

Wash cycle, rinse cycles, anti-

crease or draining cycle

Tim e 4 you

Cotton:

Heavily soiled whites and

fast colours

60°C

Wash cycle, rinse cycles,

intermediate and final spin cycles

Cotton:

Slightly soiled whites

and delicate colours (shirts,

jumpers, etc.)

40°C

Wash cycle, rinse cycles,

intermediate and final spin cycles

Synthetics:

Delicate colours (all

types of slightly soiled garments)

°C

Wash cycle, rinse cycles,

delicate spin cycle

Synthetics:

Delicate colours (all

types of slightly soiled garments)

30°C

Wash cycle, rinse cycles and

delicate spin cycle

S port

Sports shoes

(MAX. 2 pairs)

°C

Cold wash (without detergents),

wash cycle, rinse cycles, and

delicate spin cycle

Fabrics for sportswear

(Tracksuits, shorts, etc.)

30°C

Wash cycle, rinse cycles,

intermediate and final spin cycles

PARTIAL PROGRAM MES

Rinse

Delicate/

Traditional

Rinse cycles and spin cycle

Spin

Draining and spin cycle

Drain

Draining

Starting and Programmes

Programme table

Notes

-For programmes 7 and 8, we advise against exceeding a wash load of 3.5 kg.

-For programme 13 we advise against exceeding a wash load of 2 kg.
-For the anti-crease function: see Easy iron, opposite page. The information contained in the table is purely indicative.
Special programme

Daily Refresh (programme 11 for Synthetics) is designed to wash lightly soiled garments in a short amount of time: it

only lasts 30 minutes and allows you to save on both time and energy. By setting this programme (11 at 30°C), you

can wash different fabrics together (except for woollen and silk items), with a maximum load of 3 kg.

We recommend the use of liquid detergent.

Briefly: starting a programme

1. Switch the washing machine on by pressing button .

All the LEDS will light up for a few seconds and

the ON-OFF/DOOR LOCK Led will begin to flash.

2. Load your laundry into the washing machine, add

the detergent and any fabric softener (see page

and shut the appliance door.

3. Set the PROGRAMME knob to the programme

required.

4. Set the wash temperature (see page 7).

5. Set the spin speed (see page 7).

6. Start he programme by pressing the START/RESET

button.

To cancel it, keep the START/RESET button pressed

for at least 2 seconds.

7. When the programme is finished, the ON-OFF/

DOOR LOCK Led will flash to indicate that the

appliance door can be opened. Take out your

laundry and leave the appliance door ajar to allow

the drum to dry thoroughly. Turn the washing

machine off by pressing button .

Starting and programmes, Programme table, Briefly: starting a programme

Personalisations

Setting the temperature

Turn the TEMPERATURE knob to set the wash temperature (see Programme table on page 6).

The temperature can be lowered, or even set to a cold wash ( ).

Setting the spin speed

Turn the SPIN SPEED knob to set the spin speed for the programme selected.

The maximum spin speeds for each programme are as follows:
Programmes

Maximum spin speed

Cottone

800 rpm

Synthetics

800 rpm

Wool

600 rpm

Silk

The spin speed can be lowered, or the spin cycle can be excluded altogether by selecting symbol .

The washing machine will automatically prevent you from selecting a spin speed higher than the maximum

speed for each programme.

To avoid excessive vibrations, before every spin cycle the machine distributes the load in a uniform manner by

continuously rotating the drum at a speed which is slightly faster than the normal washing speed.

When, despite repeated attempts, the load is still not evenly distributed, the machine spins at a lower speed than

the set frequency.

If the load is excessively unbalanced, the machine attempts to distribute it instead of spinning.

The balancing attempts may extend the total duration of the cycle, up to a maximum of 10 minutes.

Functions

To enable a function:

1. press the button corresponding to the desired function, according to the table below;

2. the function is enabled when the corresponding button is illuminated.

Note: The rapid flashing of the button indicates that the corresponding function cannot be selected for the

programme set.

Option

Effect

Comments

Enabled with

programmes:

Delay Timer

Delays the

start of the

wash by up to

24 hours.

Pess the button repeatedly until the LED corresponding to the

desired delay is turned on. The fifth time the button is pressed, the

function will be disabled.

N.B.: Once you have pressed the Start/Reset button, the delay can

only be decreased if you wish to modify it.

All

Bleaching

Bleaching cycle

designed to

remove the

toughest

stains.

Please remember to pour the bleach into extra compartment 4

(see page 8). This option is incompatible with the EASY IRON

option.

2, 3, 4, 5,

Rinse cycles.

Easy iron

This option

reduces the

amount of

creasing on

fabrics, making

them easier to

iron.

If you set this option, programmes 4, 5,

7 and Delicate Rinse will be suspended, leaving the laundry to

soak (Anti-crease) and icon will flash:

— to conclude the cycle, press the START/RESET button;

— to run the draining cycle alone, set the knob to the relative

symbol and press the START/RESET button.

This option is incompatible with the BLEACHING option.

3, 4, 5, 7, 8,

9, 10 and

Rinse cycles

Extra Rinse

Increases the

efficiency of

the rinse.

Recommended when the appliance has a full load or with large

quantities of detergent.

1, 2, 3, 4, 5,

8, 9, 10, 12,

13 and Rinse

cycles.

Personalisations, Setting the temperature, Setting the spin speed

Detergent dispenser

Good washing results also depend on the correct

dose of detergent: adding too much detergent won’t

necessarily make for a more efficient wash, and may

in fact cause build up on the interior of your

appliance and even pollute the environment.

Open up the

detergent dispenser

and pour in the

detergent and fabric

softener, as follows.

compartment 1: Detergent for pre-wash

(powder)

compartment 2: Detergent for the wash cycle

(powder or liquid)

Liquid detergent should only be poured in

immediately prior to the wash cycle start.

Do not use hand wash detergent because it may

form too much foam.

compartment 3: Additives (fabric softeners, etc.)

When pouring the softener in compartment 3, avoid

exceeding the «max» level indicated.

The softener is added automatically into the machine

during the last wash. At the end of the wash

programme, some water will be left in compartment

3. This is used for the inlet of denser fabric softeners

into the machine, i.e. to dilute the more

concentrated softeners. Should more than a normal

amount of water remain in compartment 3, this

means the emptying device is blocked. For cleaning

instructions, see page 10.

The fabric softener should not overflow from the grid.

compartment 4: Bleach

Bleach cycle

Traditional bleach should be used on sturdy white

fabrics, and delicate bleach for coloured fabrics,

synthetics and for wool.

When pouring in the bleach, be careful not to exceed

the «max» level indicated on compartment 4 (see

figure).

To run the bleach cycle alone, pour the bleach into

compartment 4 and set the Rinse programme (for

cotton fabrics) and push the button Bleaching.

Preparing your laundry

Divide your laundry according to:

— the type of fabric/the symbol on the label.

— the colours: separate coloured garments from

whites.

Empty all pockets and check for loose buttons.

Do not exceed the weight limits stated below,

which refer to the weight when dry:

Sturdy fabrics: max 5 kg

Synthetic fabrics: max 2.5 kg

Delicate fabrics: max 2 kg

Wool: max 1 kg

How much does your laundry weigh?

1 sheet 400-500 g

1 pillow case 150-200 g

1 tablecloth 400-500 g

1 bathrobe 900-1,200 g

1 towel 150-250 g

Special items

Curtains: fold curtains and place them in a pillow

case or mesh bag. Wash them separately without

exceeding half the appliance load. Use programme 7

which excludes the spin cycle automatically.
Quilted coats and windbreakers: if they are

padded with goose or duck down, they can be

machine-washed. Turn the garments inside out and

load a maximum of 2-3 kg, repeating the rinse cycle

once or twice and using the delicate spin cycle.
Wool: for best results, use a specific detergent,

taking care not to exceed a load of 1 kg.

Detergents and laundry

Precautions and advice

The washing machine was designed and built in

compliance with the applicable international safety

regulations. The following information is provided for your

safety and should consequently be read carefully.

General safety

This appliance has been designed for non-

professional, household use and its functions must

not be changed.

This washing machine should only be used by

adults and in accordance with the instructions

provided in this manual.

Never touch the washing machine when barefoot

or with wet or damp hands or feet.

Do not pull on the power supply cable to unplug

the appliance from the electricity socket. Pull the

plug out yourself.

Do not open the detergent dispenser while the

appliance is in operation.

Do not touch the drain water as it could reach

very high temperatures.

Never force the washing machine door: this could

damage the safety lock mechanism designed to

prevent any accidental openings.

In the event of a malfunction, do not under any

circumstances touch internal parts in order to

attempt repairs.

Always keep children well away from the

appliance while in operation.

The appliance door tends to get quite hot during

the wash cycle.

Should it have to be moved, proceed with the

help of two or three people and handle it with the

utmost care. Never try to do this alone, because

the appliance is very heavy.

Before loading your laundry into the washing

machine, make sure the drum is empty.

Disposal

Disposing of the packaging material: observe local

regulations, so the packaging can be re-used.

Disposal of old electrical appliances

The European Directive 2002/96/EC on Waste

Electrical and Electronic Equipment (WEEE), requires

that old household electrical appliances must not be

disposed of in the normal unsorted municipal waste

stream. Old appliances must be collected sepately

in order to optimise the recovery and recycling of

the materials they contain and reduce the impact on

human health and the environment.

The crossed out «wheeled bin» symbol on the

product reminds you of your obligation, that when

you dispose of the appliance it must be separately

collected.

Consumers should contact their local authority or

retailer for information concerning the correct

disposal of their old appliance.
Disposing of an old washing machine:

before scrapping your appliance, cut the power

supply cable and remove the appliance door.

Saving energy and respecting the

environment

Environmentally-friendly technology

If you only see a little water through your appliance

door, this is because thanks to the latest technology,

your washing machine only needs less than half the

amount of water to get the best results: an objective

reached to respect the environment.
Saving on detergent, water,

energy and time

To avoid wasting resources, the washing machine

should be used with a full load. A full load instead

of two half loads allows you to save up to 50% on

energy.
The pre-wash cycle is only necessary on

extremely soiled garments. Avoiding it will save on

detergent, time, water and between 5 and 15%

energy.
Treating stains with a stain remover or leaving

them to soak before washing will cut down the

need to wash them at high temperatures. A

programme at 60°C instead of 90°C or one at

40°C instead of 60°C will save up to 50% on

energy.
Use the correct quantity of detergent depending

on the water hardness, how soiled the garments

are and the amount of laundry you have, to avoid

wastage and to protect the environment: despite

being biodegradable, detergents do contain

ingredients that alter the natural balance of the

environment. In addition, avoid using fabric

softener as much as possible.
If you use your washing machine from late in the

afternoon until the early hours of the morning, you

will help reduce the electricity board’s peak load.

The Delay Timer option (see page 7) helps to

organise your wash cycles accordingly.
If your laundry has to be dried in a tumble dryer,

select a high spin speed. Having the least water

possible in your laundry will save you time and

energy in the drying process.

Precautions and advice, General safety, Disposal

Care and maintenance

Cutting off the water or electricity

supply

Turn off the water tap after every wash. This will

limit the wear of your appliance’s water system

and also prevent leaks.

Unplug your appliance when cleaning it and

during all maintenance operations.

Cleaning your appliance

The exterior and rubber parts of your appliance can

be cleaned with a soft cloth soaked in lukewarm

soapy water. Do not use solvents or abrasives.

Cleaning the detergent dispenser

Remove the dispenser by raising it and pulling it out

(see figure).

Wash it under running water; this operation should

be repeated

frequently.

Caring for your appliance door and

drum

Always leave the appliance door ajar to prevent

unpleasant odours from forming.

Cleaning the pump

The washing machine is fitted with a self-cleaning

pump that does not require any maintenance.

Sometimes, small items (such as coins or buttons)

may fall into the pre-chamber that protects the

pump, situated in the lower part of the same.

To recover any objects that have fallen into the pre-

chamber:

1. remove the plinth at

the bottom on the

front side of the

washing machine by

pulling from the side

with your hands (see

figure);

2. unscrew the lid

rotating it anticlock-

wise (see figure): a

little water may trickle

out. This is perfectly

normal;

3. clean the interior

thoroughly;

4. screw the lid back

on;

5. reposition the

panel, making sure

the hooks are

securely in place

before you push it

onto the appliance.

Checking the water inlet hose

Check the water inlet hose at least once a year. If

you see any cracks, replace it immediately: during

the wash cycles, water pressure is very strong and

a cracked hose could easily split open.

Never use hoses that have already been used.

Make sure the wash cycle has ended and unplug

the appliance.

How to clean the detergent dispenser

Fig. 1

Fig. 2

Cleaning:

Then clean the dispenser under a tap (fig. 3) using an old

toothbrush and, once the pair of siphons inserted in the

top of compartments 1 and 2 (fig. 4) have been pulled

out, check whether the same are not clogged and then

rinse them.

Reassembly:

Do not forget to reinsert the

pair of siphons into the

special housings and then to

replace the dispenser into its

seat, clicking it into place

(fig. 4, 2 and 1).

Disassembly:

Press lightly on the large

button on the front of the

detergent dispenser and pull

it upwards (fig. 1).

Fig. 3

Fig. 4
