Инструкция к Стиральной Машине Indesit WITL 106

Картинка с сайта: emanuals.org

Instructions for use

WASHING MACHINE

GB

Contents

GB

CIS

ES

I

Installation, 2-3

English, 1

Русский,13

Italiano, 25

Unpacking and levelling

Electric and water connections

The first wash cycle

UK

CZ

SK

Technical details

Українська, 37

Český, 49

Slovenský, 61

Washing machine description, 4-5

Control panel

How to open and shut the drum

KZ

Leds

Кaзaкшa,73

Starting and Programmes, 6

Briefly: how to start a programme

Programme table

Personalisations, 7

Setting the temperature

WITL 1061

Setting the spin cycle

Functions

Detergents and laundry, 8

Detergent dispenser

Bleach cycle

Preparing your laundry

Special items

Woolmark Gold

Precautions and advice, 9

General safety

Disposal

Saving energy and respecting the environment

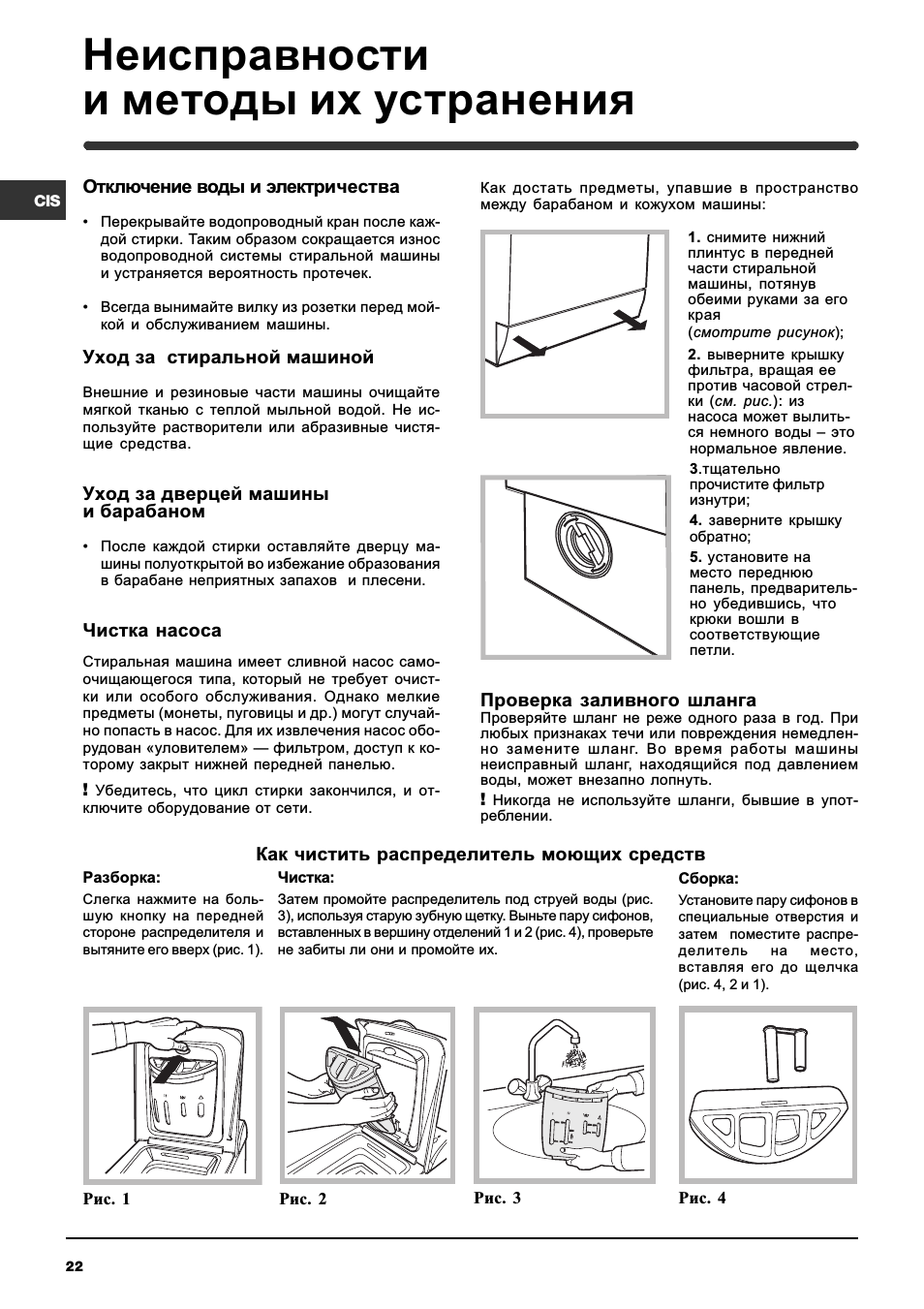

Care and maintenance, 10

Cutting off the water or electricity supply

Cleaning your appliance

Caring for your appliance door and drum

Cleaning the pump

Checking the water inlet hose

Cleaning the detergent dispenser

Troubleshooting, 11

Service, 12

Before calling for Assistance

1

Картинка с сайта: emanuals.org

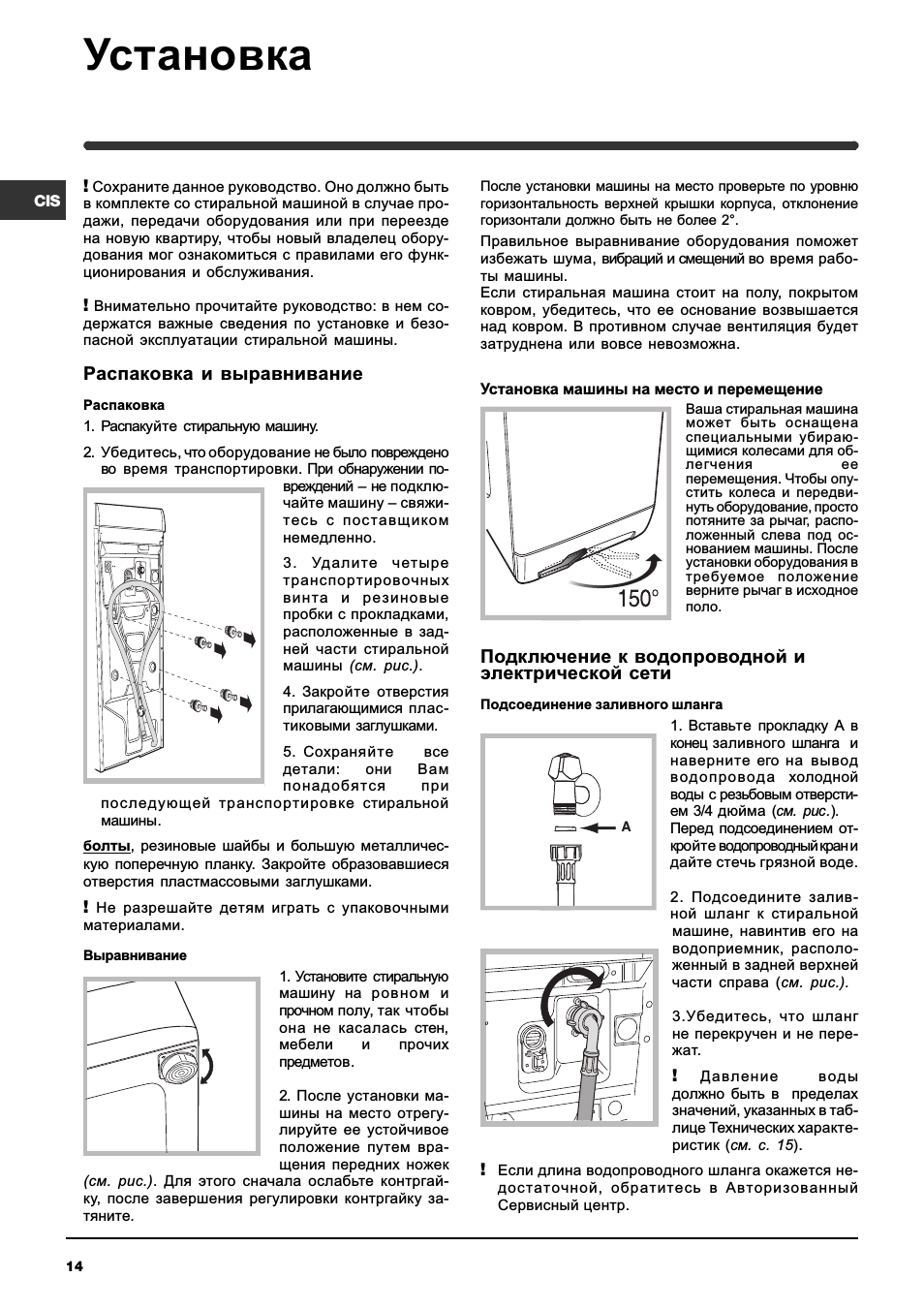

Installation

! Keep this instruction manual in a safe place for future refe-

Putting your appliance in place and moving it.

GB

rence. Should the appliance be sold, transferred or moved,

If your washing machine

make sure the instruction manual accompanies the washing

is equipped with a special

machine to inform the new owner as to its operation and

set of retractable wheels

features.

you can easy move it.

To lower the wheels and

! Read these instructions carefully: they contain vital infor—

thus move the appliance

mation on installation, use and safety.

effortlessly, just pull the

lever, situated on the left-

Unpacking and levelling

hand side beneath the

base. Once the appliance

Unpacking

is in the required position,

1. Unpack the washing

put the lever back in place. The washing machine is now

machine.

firmly in place (see figure).

2. Check whether the

Electric and water connections

washing machine has been

damaged during transport.

Connecting the water inlet hose

If this is the case, do not

install it and contact your

1. Connect the supply

retailer.

pipe by screwing it to a

cold water tab using a ¾

3. Remove the four protec-

gas threaded connection

tive screws and the rubber

(see figure).

washer with the respective

Before performing the

spacer, situated on the

connection, allow the

rear of the appliance (see

water to run freely until it is

figure).

perfectly clear.

4. Seal the gaps using the

plastic plugs provided.

2. Connect the other end of

5. Keep all the parts: you will need them again if the washing

the water inlet hose to the

machine needs to be moved to another location.

washing machine,

screwing it onto the applian-

Warning: should the screws be re-used, make sure you fasten

ce’s cold water inlet, situated

the shorter ones at the top.

on the top right-hand side

! Packaging materials are not children’s toys.

on the rear of the appliance

(see figure).

Levelling

3. Make sure there are

1. Install the washing machine

no kinks or bends in the

on a flat sturdy floor, without

hose.

resting it up against walls,

furniture cabinets or other.

! The water pressure at the tap must be within the values

indicated in the Technical details table

2. If the floor is not perfectly

(on the next page).

level, compensate for any

! If the water inlet hose is not long enough, contact a

unevenness by tightening or lo—

specialist store or an authorised serviceman.

osening the adjustable front feet

! Never use hoses that have already been used.

(see figure); the angle of inclina—

tion, measured according to the

worktop, must not exceed 2°.

Levelling your appliance correctly will provide it with stability

and avoid any vibrations, noise and shifting during operation.

If it is placed on a fitted or loose carpet, adjust the feet in

such a way as to allow enough room for ventilation beneath

the washing machine.

2

Картинка с сайта: emanuals.org

Connecting the drain hose

! Do not use extensions or multiple sockets.

GB

Connect the drain hose,

! The power supply cable must never be bent or dange-

without bending it, to a

rously compressed.

draining duct or a wall

drain situated between 65

! The power supply cable must only be replaced by an

and 100 cm from the floor;

authorised serviceman.

Warning! The company denies all liability if and when

these norms are not respected.

The first wash cycle

alternatively, place it over

Once the appliance has been installed, and before you

the edge of a basin, sink

use it for the first time, run a wash cycle with detergent

or tub, fastening the duct

and no laundry, setting the 90°C programme without a

supplied to the tap (see

pre-wash cycle.

figure). The free end of

the hose should not be

underwater.

! We advise against the use of hose extensions; in case

of absolute need, the extension must have the same

diameter as the original hose and must not exceed 150

cm in length.

Electric connection

Before plugging the appliance into the mains socket,

make sure that:

• the socket is earthed and in compliance with the

applicable law;

• the socket is able to sustain the appliance’s

maximum power load indicated in the Technical

details table (on the right);

• the supply voltage is included within the values i

ndicated on the Technical details table

(on the right);

• the socket is compatible with the washing

machine’s plug. If this is not the case, replace

the socket or the plug.

! The washing machine should not be installed in an ou-

tdoor environment, not even when the area is sheltered,

because it may be very dangerous to leave it exposed to

rain and thunderstorms.

! When the washing machine is installed, the mains so-

cket must be within easy reach.

3

65 — 100 cm

Technical details

Model

WITL 1061

40 cm wide

Dimensions

85 cm high

60 cm deep

Capacity

from 1 to 5 kg

Electric

Please refer to the technical data plate

connections

fixed to the machine.

maximum pressure 1 MPa (10 bar)

Water

minimum pressure 0.05 MPa (0.5 bar)

connections

drum capacity 42 litres

Spin speed

up to 1000 rpm

Test wash

cycles in

accordance

Programme : Cotton standard 60°C;

with directives

Programme : Cotton standard 40°C.

1061/2010 and

1015/2010.

This appliance is compliant with

the following European Community

Directives:

— 2004/108/CEE (Electromagnetic

Compatibility)

— 2006/95/CE (Low Voltage)

— 2002/96/CE

Картинка с сайта: emanuals.org

Washing machine description

Control panel

GB

START/RESET

LID LOCKED

button

LED

FUNCTION

Buttons

ON/OFF

button

LEDs

SPIN

TEMPERATURE

PROGRAMME

knob

knob

knob

Detergent dispenser to add detergent and fabric sof-

ON-OFF/LID LOCK led, to find out whether the wash-

tener (see page 8).

ing machine is on (flashing) and if the lid may be opened

(see page 5).

LEDs to find out which wash cycle phase is under way.

If the Delay Timer function has been set, the time left until the

PROGRAMME knob to set the programmes

programme starts will be indicated (see page 5).

(see page 6).

The knob stays still during the cycle.

FUNCTION keys to select the functions available.

The button corresponding to the function selected will

Standby mode

remain on.

This washing machine, in compliance with new energy sa-

ving regulations, is fitted with an automatic standby system

SPIN SPEED knob to set the spin speed or exclude the

which is enabled after about 30 minutes if no activity is

spin cycle completely (see page 7).

detected. Press the ON/OFF button briefly and wait for the

machine to start up again.

TEMPERATURE knob to set the temperature or the cold

Consumption in off-mode: 1W

wash cycle (see page 7).

Consumption in Left-on: 1W

ON/OFF key to turn the washing machine on and off.

START/RESET key to start the programmes or cancel

incorrect settings.

ON-OFF/LID LOCK led:

If this LED is on, the appliance Lid is locked to prevent it from being opened accidentally; to avoid any damages, you must

wait for the lamp to flash before you open the Lid.

.

! The rapid flashing of the ON-OFF/LID LOCK Led together with the flashing of at least one other LED indicates there is an

abnormality (see page 11).

4

Картинка с сайта: emanuals.org

How to open and to close the drum

GB

A) Opening (Fig. 1).

Lift the external lid and open it completely.

B) Opening the drum (Soft opening):

With one finger, push the button indicated in fig. 2 and the

drum will open delicately.

C) Loading the washing machine. (Fig. 3).

D) Shutting (Fig. 4).

— close the drum fully by first shutting the front door

Fig. 1

Fig. 2

followed by the rear one;

— then ensure the hooks on the front door are perfectly

housed within the seat of the rear door;

— after the hooks have clicked into position, press both

doors lightly downwards to make sure they do not

come loose;

— finally shut the external lid.

Fig. 3

Fig. 4

Leds

Cycle phase under way:

During the wash cycle, the LEDs gradually illuminate on

The LEDS provide important information.

to indicate the cycle phase under way:

This is what they can tell you:

Delay set:

Prewash

If the Delay Timer function has been enabled (see page.

7), once you have started the programme, the LED corre-

Wash

sponding to the delay set will begin to flash:

Rinse

Spin cycle

Note: during draining, the LED corresponding to the Spin

cycle phase will be turned on.

Function buttons

As time passes, the remaining delay will be displayed,

The FUNCTION BUTTONS also act like LEDS.

and the corresponding LED will flash:

When a function is selected, the corresponding button is

illuminated.

If the function selected is incompatible with the program-

me set, the button will flash and the function will not be

enabled.

If you set a function that is incompatible with another fun-

ction you selected previously, only the last one selected

will be enabled.

Once the set delay is complete, the flashing LED will turn

off and the programme set will start.

5

Картинка с сайта: emanuals.org

Starting and Programmes

Briefly: starting a programme

5. Set the spin speed (see page 7).

6. Start he programme by pressing the START/RESET button.

1. Switch the washing machine on by pressing button .

To cancel it, keep the START/RESET button pressed for at

GB

All the LEDS will light up for a few seconds and the ON-OFF/

least 2 seconds.

DOOR LOCK Led will begin to flash.

7. When the programme is finished, the ON-OFF/DOOR

2. Load your laundry into the washing machine, add the

LOCK Led will flash to indicate that the appliance door can

detergent and any fabric softener (see page and shut the

be opened. Take out your laundry and leave the appliance

appliance door.

door ajar to allow the drum to dry thoroughly. Turn the

3. Set the PROGRAMME knob to the programme required.

washing machine off by pressing button .

4. Set the wash temperature (see page 7).

Programme table

Detergents

Max.

Max.

Description of the wash cycle

temp.

speed

kWh

(°C)

(rpm)

Cycle

Residual

Energy

duration

Wash cycles

Wash

Fabric

softener

Bleach

Max. load (kg)

dampness %

consumption

Total water lt

Prewash

Standard

1

Cotton with prewash: extremely soiled whites. 90° 1000

  

— 5 62 1,82 64 150’

2

Cotton: extremely soiled whites. 90° 1000 —

  

5 62 1,90 60 135’

3

Coloured Cottons: lightly soiled whites and delicate colours. 40° 1000 —

  

5 62 0,53 50 90’

4

Synthetics: heavily soiled resistant colours. 60° 800 —

  

2,5 44 0,85 39 105’

4

Synthetics (3): lightly soiled resistant colours. 40° 800 —

  

2,5 44 0,53 39 95’

Cotton Standard 60°C (1): heavily soiled whites and resistant colours. 60° 1000 —

  

5 62 0,88 52 160‘

Cotton Standard 40°C (2): lightly soiled whites and delicate colours. 40° 1000 —

  

5 62 0,91 63 150‘

7

Wool: for wool, cashmere, etc. 40° 800 —

 

— 1 — — — 65’

8 Cotton Standard 20°C

20° 1000 —

  

5 — — — 180’

Time 4 you

9

Cotton: Heavily soiled whites and fast colours 60° 1000 —

 

— 3,5 — — — 60’

10

Cotton: Lightly soiled whites and delicate colours (shirts, jumpers, etc.) 40° 1000 —

 

— 3,5 — — — 50’

11

Synthetics: Delicate colours (all types of slightly soiled garments) 40° 800 —

 

— 2,5 — — — 40’

Express: to refresh lightly soiled garments quickly (not suitable for wool, silk

12

30° 800 —

 

— 3 71 0,25 33 30’

and clothes which require washing by hand).

Sport

Max.

13 Special Shoes

30° 600 —

 

—

— — — 55‘

2 pairs

14 Sport Intensive

30° 600 —

 

— 2 — — — 85‘

Partial programmes

Rinse — 1000 — —

 

5 — — — 36’

Spin + Drain — 1000 — — — — 5 — — — 16’

The length of cycle shown on the display or in this booklet is an estimation only and is calculated assuming standard working conditions. The actual duration can vary accor-

ding to factors such as water temperature and pressure, the amount of detergent used, the amount and type of load inserted, load balancing and any wash options selected.

1) Test wash cycle in compliance with directive 1061/2010: set wash cycle with a temperature of 60°C.

This cycle is designed for cotton loads with a normal soil level and is the most efficient in terms of both electricity and water consumption; it should be used for garments

which can be washed at 60°C. The actual washing temperature may differ from the indicated value.

2) Test wash cycle in compliance with directive 1061/2010: set wash cycle with a temperature of 40°C.

This cycle is designed for cotton loads with a normal soil level and is the most efficient in terms of both electricity and water consumption; it should be used for garments

which can be washed at 40°C. The actual washing temperature may differ from the indicated value.

For all Test Institutes:

2) Long wash cycle for cottons: set wash cycle with a temperature of 40°C.

3) Long wash cycle for synthetics: set wash cycle 4; with a temperature of 40°C.

Notes

-For programmes 9 and 10, we advise against exceeding a wash load of 3.5 kg.

-For programme 14 we advise against exceeding a wash load of 2 kg.

Cotton Standard 20°C (wash cycle 8) ideal for heavily soiled cotton loads. The effective performance levels achieved at cold

temperatures, which are comparable to washing at 40°, are guaranteed by a mechanical action which operates at varying

speed, with repeated and frequent peaks.

Express (wash cycle 12) this wash cycle was designed to wash lightly soiled garments quickly: it lasts just 30 minutes and

therefore saves both energy and time. By selecting this wash cycle (12 at 30°C), it is possible to wash different fabrics toge-

ther (except for wool and silk items), with a maximum load of 3 kg.

6

Картинка с сайта: emanuals.org

Personalisations

GB

7

C

Setting the temperature

Turn the TEMPERATURE knob to set the wash temperature (see Programme table on page 6).

The temperature can be lowered, or even set to a cold wash ( ).

Setting the spin speed

Turn the SPIN SPEED knob to set the spin speed for the programme selected.

The maximum spin speeds for each programme are as follows:

Programmes Maximum spin speed

Cottone 1000 rpm

Synthetics 800 rpm

Wool 800 rpm

Silk no

The spin speed can be lowered, or the spin cycle can be excluded altogether by selecting symbol .

The washing machine will automatically prevent you from selecting a spin speed higher than the maximum speed for each

programme.

Note. To avoid excessive vibrations, before every spin cycle the machine distributes the load in a uniform manner by continuously rotating

the drum at a speed which is slightly faster than the normal washing speed. When, despite repeated attempts, the load is still not evenly

distributed, the machine spins at a lower speed than the set frequency. If the load is excessively unbalanced, the machine attempts to

distribute it instead of spinning. The balancing attempts may extend the total duration of the cycle, up to a maximum of 10 minutes.

Functions

To enable a function:

1. press the button corresponding to the desired function, according to the table below;

2. the function is enabled when the corresponding button is illuminated.

Note: The rapid flashing of the button indicates that the corresponding function cannot be selected for the programme set.

Option Effect Comments Enabled with

programmes:

Delays the start of the

Pess the button repeatedly until the LED corresponding to the

All

wash by up to 9 hours.

desired delay is turned on. The fifth time the button is pressed, the

function will be disabled.

N.B.: Once you have pressed the Start/Reset button, the delay

Delay Timer

can only be decreased if you wish to modify it.

Bleaching cycle de-

Please remember to pour the bleach into extra compartment 4

2, 3, 4,

, ,

signed to remove the

(see page 8).

8 and

toughest stains.

Rinse cycle.

This option is incompatible with the EASY IRON option.

Bleaching

This option reduces

1, 2, 3, 4,

,

the amount of creasing

, 8, 9, 10, 11.

on fabrics, making

Easy iron

them easier to iron.

Increases the efficiency

Recommended when the appliance has a full load or with large

1, 2, 3, 4, ,

of the rinse.

quantities of detergent.

, 7, 8, 9, 10,

11, 13, 14, and

Extra Rinse

Rinse cycle.

Картинка с сайта: emanuals.org

Detergents and laundry

Detergent dispenser

Preparing your laundry

GB

• Divide your laundry according to:

Good washing results also depend on the correct dose of

— the type of fabric/the symbol on the label.

detergent: adding too much detergent won’t necessarily

— the colours: separate coloured garments from whites.

make for a more efficient wash, and may in fact cause build

• Empty all pockets and check for loose buttons.

up on the interior of your appliance and even pollute the

• Do not exceed theweight limits stated below,

environment.

which refer to the weight when dry:

Sturdy fabrics: max 5 kg

Synthetic fabrics: max 2.5 kg

! Do not use hand washing detergents because these crea-

Delicate fabrics: max 2 kg

te too much foam.

Wool: max 1 kg

! Use powder detergent for white cotton garments, for pre-

washing, and for washing at temperatures over 60°C.

How much does your laundry weigh?

! Follow the instructions given on the detergent packaging.

1 sheet 400-500 g

1 pillow case 150-200 g

Open up the detergent

1 tablecloth 400-500 g

dispenser and pour in the

1 bathrobe 900-1,200 g

detergent and fabric softe-

1 towel 150-250 g

ner, as follows.

Special items

Quilted coats and windbreakers: if they are padded

with goose or duck down, they can be machine-washed.

Turn the garments inside out and load a maximum of 2-3

kg, repeating the rinse cycle once or twice and using the

delicate spin cycle.

Wool: for best results, use a specific detergent, taking

compartment 1: Detergent for pre-wash (powder)

care not to exceed a load of 1 kg.

compartment 2: Detergent for the wash cycle

(powder or liquid)

Liquid detergent should only be poured in immediately prior

to the wash cycle start.

! Do not use hand wash detergent because it may form too

much foam.

compartment 3: Additives (fabric softeners, etc.)

When pouring the softener in compartment 3, avoid exceeding

the “max” level indicated.

The softener is added automatically into the machine during

the last wash. At the end of the wash programme, some

water will be left in compartment 3. This is used for the inlet of

denser fabric softeners into the machine, i.e. to dilute the more

concentrated softeners. Should more than a normal amount

of water remain in compartment 3, this means the emptying

device is blocked. For cleaning instructions, see page 10. The

fabric softener should not overflow from the grid.

compartment 4: Bleach

Bleach cycle

Traditional bleach should be used on sturdy white fabrics, and

delicate bleach for coloured fabrics, synthetics and for wool.

When pouring in the bleach, be careful not to exceed the “max”

level indicated on compartment 4 (see figure).

To run the bleach cycle alone, pour the bleach into compart-

ment 4 and set the Rinse programme (for cotton fabrics)

and push the button Bleaching.

8

Картинка с сайта: emanuals.org

Precautions and advice

! The washing machine was designed and built in com-

Old appliances must be collected separately in order to

GB

pliance with the applicable international safety regula-

optimise the recovery and recycling of the materials they

tions. The following information is provided for your safety

contain and reduce the impact on human health and the

and should consequently be read carefully.

environment. The crossed out “wheeled bin” symbol on

the product reminds you of your obligation, that when you

General safety

dispose of the appliance it must be separately collected.

• This appliance has been designed for non-

Consumers may take their old appliance to public waste

professional, household use and its functions must

collection areas, other communal collection areas, or if

not be changed.

national legislation allows return it to a retailer when pur—

chasing a similar new product.

• This appliance is not intended for use by persons

All major household appliance manufacturers are active

(including children) with reduced physical, sensory or

in the creation of systems to manage the collection and

mental capabilities, or lack of experience and know-

disposal of old appliances.

ledge, unless they have been given supervision or

instruction concerning use of the appliance by a person

Saving energy and respecting the

responsible for their safety. Children should be supervi-

environment

sed to ensure that they do not play with the appliance.

Environmentally-friendly technology

If you only see a little water through your appliance door,

• This washing machine should only be used by

this is because thanks to the latest technology, your

adults and in accordance with the instructions

washing machine only needs less than half the amount

provided in this manual.

of water to get the best results: an objective reached to

respect the environment.

• Never touch the washing machine when barefoot

Saving on detergent, water, energy and time

or with wet or damp hands or feet.

• To avoid wasting resources, the washing machine

• Do not pull on the power supply cable to unplug

should be used with a full load. A full load instead

the appliance from the electricity socket. Pull the

of two half loads allows you to save up to 50% on energy.

plug out yourself.

• The pre-wash cycle is only necessary on

• Do not touch the drain water as it could reach

extremely soiled garments. Avoiding it will save on

very high temperatures.

detergent, time, water and between 5 and 15% energy.

• Never force the washing machine door: this could

• Treating stains with a stain remover or leaving

damage the safety lock mechanism designed to

them to soak before washing will cut down the

prevent any accidental openings.

need to wash them at high temperatures. A

programme at 60°C instead of 90°C or one at

• In the event of a malfunction, do not under any

40°C instead of 60°C will save up to 50% on energy.

circumstances touch internal parts in order to

attempt repairs.

• Use the correct quantity of detergent depending on

the water hardness, how soiled the garments are and

• Always keep children well away from the

the amount of laundry you have, to avoid wastage and

appliance while in operation.

to protect the environment: despite being biodegra-

dable, detergents do contain ingredients that alter the

• Should it have to be moved, proceed with the

natural balance of the environment. In addition, avoid

help of two or three people and handle it with the

using fabric softener as much as possible.

utmost care. Never try to do this alone, because

the appliance is very heavy.

• If you use your washing machine from late in the

afternoon until the early hours of the morning, you

• Before loading your laundry into the washing

will help reduce the electricity board’s peak load.

machine, make sure the drum is empty.

The Delay Timer option (see page 7) helps to organise

your wash cycles accordingly.

Disposal

The European Directive 2002/96/EC on Waste Electrical

• If your laundry has to be dried in a tumble dryer,

and Electronic Equipment, requires that old household

select a high spin speed. Having the least water

electrical appliances must not be disposed of in the normal

possible in your laundry will save you time and

unsorted municipal waste stream.

energy in the drying process.

9

Картинка с сайта: emanuals.org

Care and maintenance

Cutting off the water or electricity supply

To recover any objects that have fallen into the pre-

GB

• Turn off the water tap after every wash. This will limit the wear

chamber:

of your appliance’s water system and also prevent leaks.

1. remove the plinth at

the bottom on the front

• Unplug your appliance when cleaning it and during all

side of the washing

maintenance operations.

machine by pulling from

the side with your hands

Cleaning your appliance

(see figure);

The exterior and rubber parts of your appliance can be cle-

2. unscrew the lid

aned with a soft cloth soaked in lukewarm soapy water. Do

rotating it anticlock-wise

not use solvents or abrasives.

(see figure): a little water

may trickle out. This is

Cleaning the detergent dispenser

perfectly normal;

Remove the dispenser by raising it and pulling it out (see

figure). Wash it under running water; this operation should

3. clean the interior

be repeated frequently.

thoroughly;

4. screw the lid back on;

Caring for your appliance door and drum

5. reposition the panel,

• Always leave the appliance door ajar to prevent unplea-

making sure the hooks

sant odours from forming.

are securely in place

before you push it onto

Cleaning the pump

the appliance.

The washing machine is fitted with a self-cleaning pump that

does not require any maintenance. Sometimes, small items

(such as coins or buttons) may fall into the pre-chamber that

protects the pump, situated in the lower part of the same.

Checking the water inlet hose

Check the water inlet hose at least once a year. If you

! Make sure the wash cycle has ended and unplug the

see any cracks, replace it immediately: during the wash

appliance.

cycles, water pressure is very strong and a cracked hose

could easily split open.

! Never use hoses that have already been used.

How to clean the detergent dispenser

Disassembly:

Cleaning:

Reassembly:

Press lightly on the large

Then clean the dispenser under a tap (fig. 3) using an old

Do not forget to reinsert

the pair of siphons into the

button on the front of the

toothbrush and, once the pair of siphons inserted in the

special housings and then to

detergent dispenser and pull

top of compartments 1 and 2 (fig. 4) have been pulled

replace the dispenser into its

it upwards (fig. 1).

out, check whether the same are not clogged and then

seat, clicking it into place (fig.

rinse them.

4, 2 and 1).

Fig. 1 Fig. 2

Fig. 3

Fig. 4

10

Картинка с сайта: emanuals.org

Troubleshooting

Your washing machine could fail to work. Before calling for Assistance (see page 12), make sure the problem can’t easily

GB

be solved by consulting the following list.

Problem

Possible causes/Solution:

The washing machine won’t start.

• The appliance is not plugged into the socket, or not enough to

make contact.

• There has been a power failure.

The wash cycle won’t start.

• The appliance door is not shut properly. The Lid locked Led flashes.

• The button has not been pressed.

• The START/RESET button has not been pressed.

• The water tap is not turned on.

• A delayed start has been set (using the Delay Timer, see page 7).

The washing machine fails to load

• The water inlet hose is not connected to the tap.

• The hose is bent.

water.

• The water tap is not turned on.

• There is a water shortage.

• The water pressure is insufficient.

• The START/RESET button has not been pressed.

The washing machine continuou-

• The drain hose is not fitted between 65 and 100 cm from the floor

sly loads and unloads water.

(see page 3).

• The free end of the hose is underwater (see page 3).

• The wall drainage system doesn’t have a breather pipe.

If the problem persists even after these checks, turn off the water tap, switch the

appliance off and call for Assistance. If the dwelling is on one of the upper floors of

a building, there may be drain trap problems causing the washing machine to load

and unload water continuously. In order to avoid such an inconvenience, special

anti-drain trap valves are available in shops.

The washing machine does not

• The programme does not foresee the draining: some programmes

drain or spin.

require enabling the draining manually (see page 6).

• The Easy iron option is enabled: to complete the programme, press

the START/RESET button (see page 7).

• The drain hose is bent (see page 3).

• The drain duct is clogged.

The washing machine vibrates too

• The drum was not unblocked correctly during installation (see page 2).

much during the spin cycle.

• The washing machine is not level (see page 2).

• The washing machine is closed in between furniture cabinets and

the wall (see page 2).

The washing machine leaks.

• The water inlet hose is not screwed on correctly (see page 2).

• The detergent dispenser is obstructed (to clean it, see page 10).

• The drain hose is not secured properly (see page 3).

The ON-OFF/DOOR LOCK Led

• Switch off the machine and unplug the appliance; wait for

flashes rapidly at the same time

approximately 1 minute then switch it on again.

as at least one other LED.

If the problem persists, contact Assistance.

There is too much foam.

• The detergent is not suitable for machine washing (it should bear

the definition “for washing machines” or “hand and machine wash”,or the like).

• You used too much detergent.

11

Картинка с сайта: emanuals.org

Service

Before calling for Assistance:

GB

• Check whether you can solve the problem on your own (see page 11);

• Restart the programme to check whether the problem has been solved;

• If this is not the case, contact an authorised Technical Service Centre on the telephone number provided on the guarantee

certificate.

! Always request the assistance of authorised servicemen.

Notify the operator of:

• the type of problem;

• the appliance model (Mod.);

• the serial number (S/N).

This information can be found on the data plate situated on the rear of the washing machine.

12

Картинка с сайта: emanuals.org

Руководство по экпуатации

СТИРАЛЬНАЯ МАШИНА

CIS

Содержание

CIS

Установка,14-15

РУССКИЙ

Распаковка и выравнивание

Подключение к водопроводной и электрической сети

Пробный цикл стирки

Описание стиральной машины, 16-17

Панель управления

Как открыть и закрыть барабан

Индикаторы

Запуск машины. Программы, 18

Краткие инструкции: Порядок запуска программы

Таблица программ

Персонализация стирки, 19

Выбор температуры

Выбор скорости отжима

WITL 1061

Функции

Моющие средства и белье, 20

Распределитель моющих средств

Цикл отбеливания

Подготовка белья

Особенности стирки отдельных изделий

Предупреждения и рекомендации, 21

Общие правила безопасности

Утилизация

Экономия и охрана окружающей среды

Обслуживание и уход, 22

Отключение воды и электричества

Уход за стиральной машиной

Уход за дверцей машины и барабаном

Как чистить распределитель моющих средств

Чистка насоса

Проверка заливного шланга

Устранение неисправностей, 23

Сервисное обслуживание, 24

Технические данные

13

Картинка с сайта: emanuals.org

Установка

! Сохраните данное руководство. Оно должно быть в

Правильное выравнивание оборудования поможет избе

CIS

комплекте со стиральной машиной в случае продажи,

жать шума, вибраций и смещений во время работы машины.

передачи оборудования или при переезде на новую

Если стиральная машина стоит на полу, покрытом

квартиру, чтобы новый владелец оборудования мог

ковром, убедитесь, что ее основание возвышается над

ознакомиться с правилами его функционирования и

ковром. В противном случае вентиляция будет затруд

обслуживания.

нена или вовсе невозможна.

Установка машины на место и перемещение

! Внимательно прочитайте руководство: в нем содер

Ваша стиральная машина

жатся важные сведения по установке и безопасной

может быть оснащена спе

эксплуатации стиральной машины.

циальными убирающимися

колесами для облегчения

Распаковка и выравнивание

ее перемещения. Чтобы опу

стить колеса и передвинуть

Распаковка

оборудование, просто потя

ните за рычаг, расположен

1. Распакуйте стираль

ный слева под основанием

ную машину.

машины. После установки

оборудования в требуемое

2. Убедитесь, что обору

положение верните рычаг в

дование не было повреж

исходное поло.

дено во время транс

портировки. При обнару

Подключение к водопроводной и элек-

жении повреждений – не

трической сети

подключайте машину –

свяжитесь с поставщиком

Подсоединение заливного шланга

немедленно.

1. Прикрутите шланг подачи к

3. Удалите четыре транс

крану холодной воды с резь

портировочных винта и

бовым отверстием 3/4 gas (см.

резиновые пробки с про

схему).

кладками, расположенные

Перед подсоединением от

в задней части стиральной

кройте водопроводный кран

машины (см. рис.).

до тех пор, пока из него не

4. Закройте отверстия

потечет чистая вода.

прилагающимися пластиковыми заглушками.

5. Сохраняйте все детали: они Вам понадобятся при

последующей транспортировке стиральной машины.

болты, резиновые шайбы и большую металлическую

2. Подсоедините заливной

поперечную планку. Закройте образовавшиеся отверс

шланг к стиральной маши

тия пластмассовыми заглушками.

не, навинтив его на водо

приемник, расположенный

! Не разрешайте детям играть с упаковочными мате

в задней верхней части

риалами.

справа (см. рис.).

Выравнивание

3.Убедитесь, что шланг не

1. Установите стиральную

перекручен и не пережат.

машину на ровном и проч

ном полу, так чтобы она не

касалась стен, мебели и

прочих предметов.

! Давление воды должно быть в пределах значений,

2. После установки ма

указанных в таблице Технических характеристик (см.

шины на место отрегу

с. 15).

лируйте ее устойчивое

! Если длина водопроводного шланга окажется недо

положение путем враще

статочной, обратитесь в Авторизованный Сервисный

ния передних ножек (см.

центр.

рис.). Для этого сначала

ослабьте контргайку, после завершения регулировки

контргайку затяните.

После установки машины на место проверьте по уровню

горизонтальность верхней крышки корпуса, отклонение

горизонтали должно быть не более 2°.

14

Картинка с сайта: emanuals.org

Подсоединение сливного шланга

  розетка заземлена в соответствии с нормами безопас

ности, описанными в данном разделе инструкции

CIS

Повесьте загнутый конец

(допускается организация заземления рабочим нулем,

сливного шланга на край

при условии, что защитная линия не имеет разрыва и

раковины, ванны, или

подключена напрямую в обвод какихлибо приборов

поместите в специаль

(например, электрического счетчика).

ный вывод канализации.

Если вилка не подходит к розетке, ее следует заменить на

Шланг не должен переги

новую, соответствующую розетке, или заменить питающий

баться. Верхняя точка

кабель. За мена кабеля должна производиться только квали

сливного шланга долж

фицированным персоналом. Запрещается использование

на находиться на вы

переходников, двойных и более розеток и удлинителей (они

соте 65100 см от пола.

создают опасность возгорания). Если Вы считаете их ис

Расположение сливного

пользование необходимым, применяйте один единственный

шланга должно обеспе

удлинитель, удовлетворяющий требованиям безопасности.

чивать разрыв струи при

Оборудование, подключенное с нарушением требований

сливе (конец шланга не

безопасности бытовых приборов большой мощности, из—

должен быть опущен в

ложенных в данной инструкции, является потенциально

воду).

опасным. Производитель не несет ответственности за

В случае крепления на

ущерб здоровью и собственности, если он вызван несо—

край ванной или рако

блюдением указанных норм установки.

вины, шланг вешается

с помощью направляю

Первый цикл стирки

щей (входит в комплект

По завершении установки, перед началом эксплуа

поставки), которая кре

тации необходимо произвести один цикл стирки со

пится к крану (рис.).

стиральным порошком, но без белья, по программе

! Не рекомендуется при

90°C без предварительной стирки.

менение удлинителей для сливного шланга, при не

обходимости допускается его наращивание шлангом

такого же диаметра и длиной не более 150 см.

Подсоединение к электросети

Внимание! Оборудование обязательно должно

быть заземлено!

1. Машина подключается к электрической сети при по

мощи двухполюсной розетки с заземляющим контактом

(розетка не поставляется с машиной). Фазный провод
